About this item

• This display is suitable for use with X86 PCs and RPI 4B 3B+ 3B 3A+ 2B B+ or other devices capable of outputting 1280×720 resolution. 3D printed case already installed with 2 brackets.

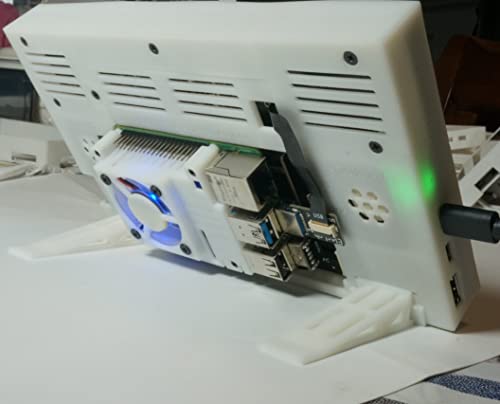

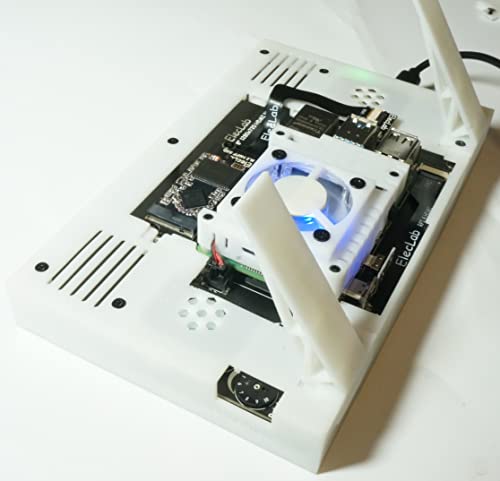

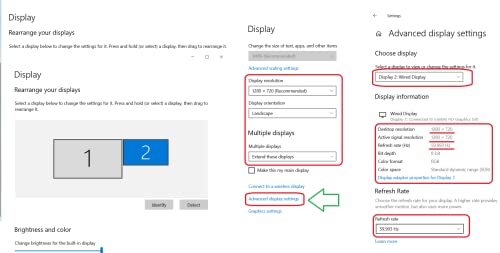

• HDMI interface 8 inch IPS LCD 1280×720 screen with 5 point capacitive touch screen.The RPI board can be installed through the 4 positioning holes on the back of the display.It can also be used as a second HDMI display for a computer.
• The brightness of the display can be adjusted through the side brightness potentiometer.(The current is 1A at 10 levels of maximum brightness, and 0.5A at 5 levels of brightness.)
• Integrate 2x3W speakers, the volume can be adjusted by software.(The current is about 1A at the maximum volume.)
• New display firmware is available! The display’s MCU firmware can be updated via USB, please refer to electlab-rpi/Display_Firmware on github.

›
