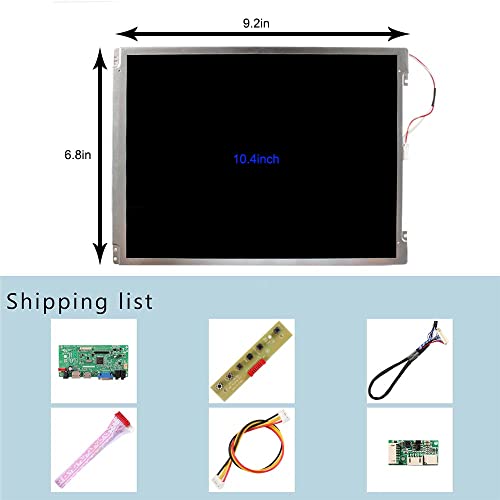

- 【4:3 IPS Screen】Display area 211.2x158.4(H×V)mm,high brightness 500nit ,WLED backlight ,Viewing Angle 80/80/60/80, With left and right location holes,you can located it according to your demands.

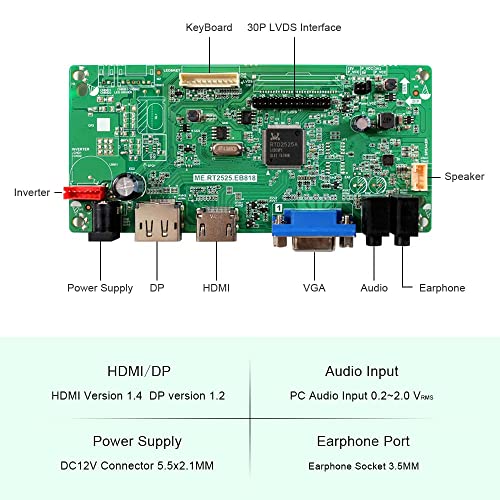

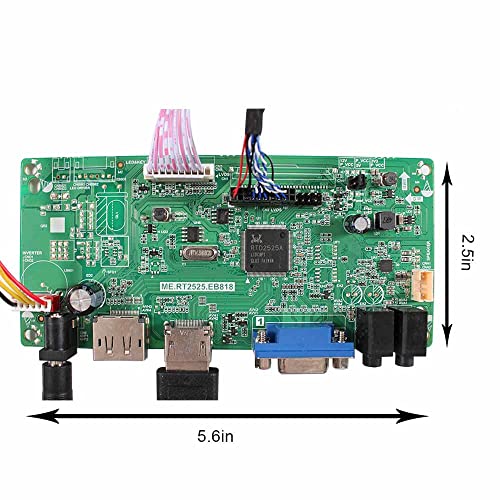

- 【LCD Controller Board】Video input:HD-MI DP VGA ,Audio Output: Speaker (8ohm 2W 4Pin PH2.0 connector Speaker) , Please use in insulated environment.
- 【Input Power Supply】12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.

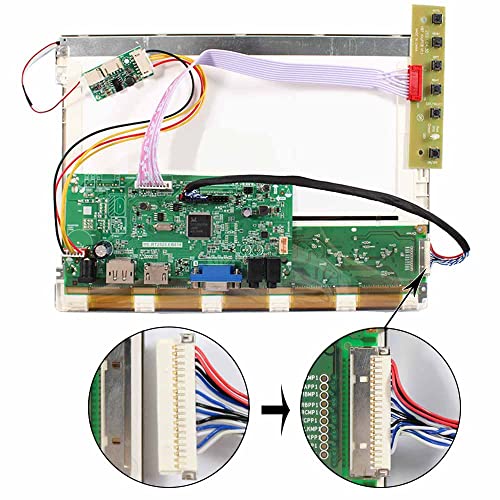

- 【Plug and play】Connecting cables and ports according to link picture details ,power on ,enter into HD-MI signal ,with correct resolution ,the screen will shows information you want perfectly.

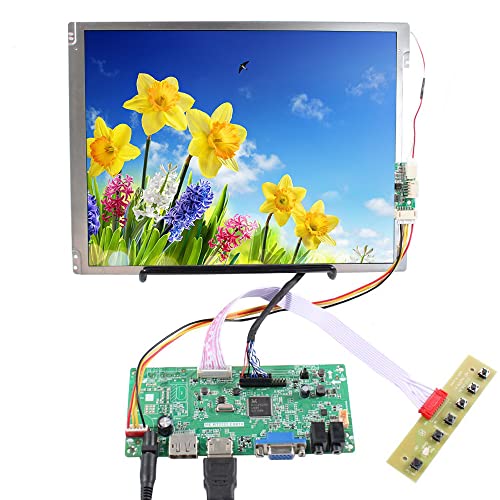

- 【Packing lists】1× HD DP VGA LCD Controller Board RT2525.EB818,1× 10.4inch VS104T-001A 800X600 LCD Screen,1× Converter Board,1× LVDS Cable,1× Keyboard With Cable
›
