- 7 inch 1024x600 700nit high brightness IPS LCD display monitor ,178 degree full viewing angle ,display area :154.21 × 85.92(H×V)mm, wled backlight ,Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC.

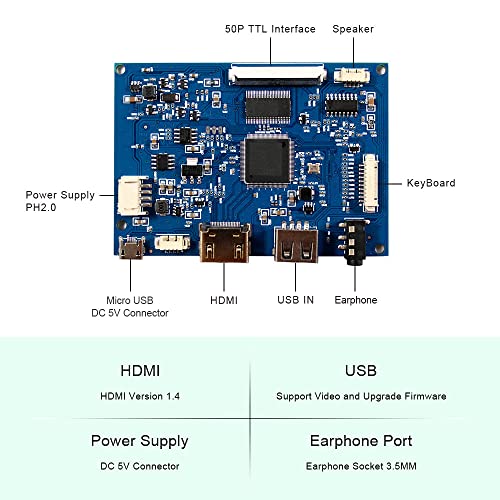

- LCD driver board video input: HD-MI USB,USB output voltage 5Vdc max 500mA, Audio output:Speaker 8ohm 2W or 4ohm 2W, Please use in insulated environment.
- Input Power Supply: 5V DC More than 2A (the voltage can only be 5V DC),Pls prepare power adapter by yourself.

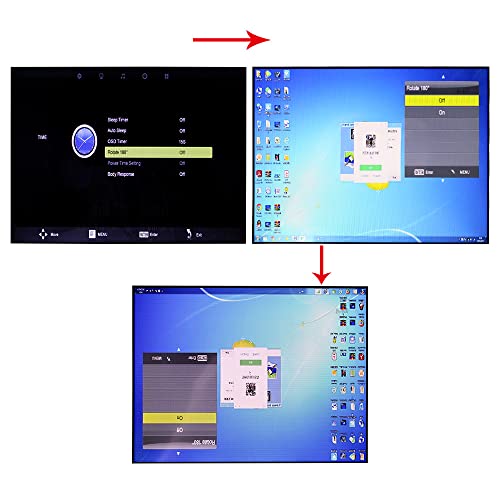

- Plug and play: Connecting the cables and port as link picture details ,power on ,enter HD-MI/USB signal ,the screen can work well ,This panel support image 180 degree rotation, for DIY monitor using.

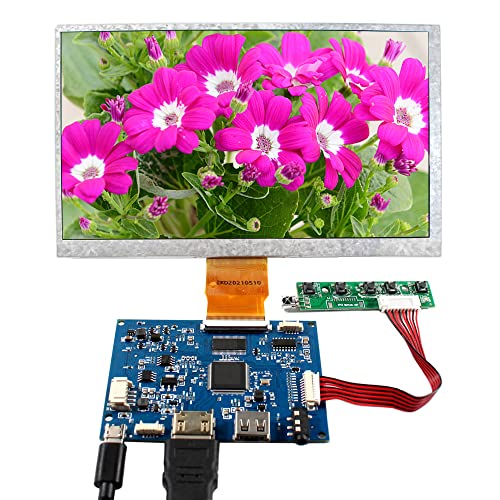

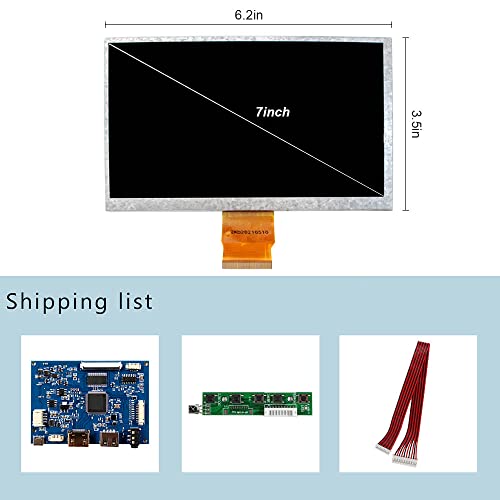

- Packing lists: 1× HD-MI USB LCD Control Board VS-TY2660H-V827,1× 7inch VS070T-006A 700nit high brightness LCD Screen,1× Keyboard With Cable
›
