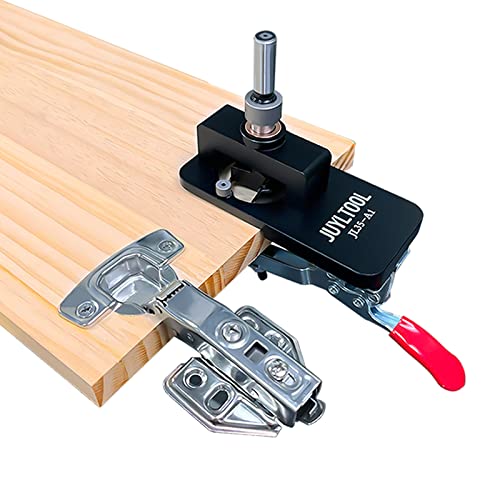

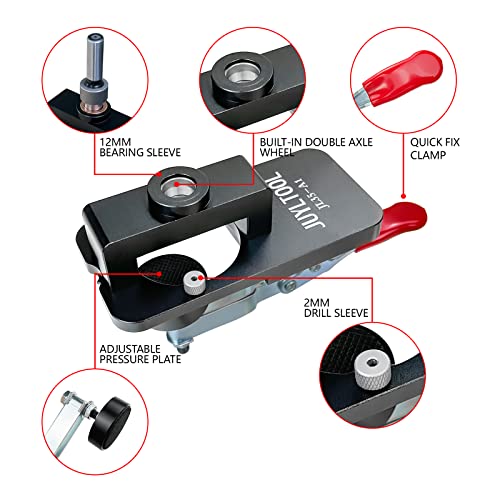

- 【Sturdy and durable】:35MM hinge positioning hole opener is made of aluminum alloy, precise manufacturing, accurate locking, easy operation, 12mm hole with built-in double bearings to reduce the wear and tear of the drill shank and bearing sleeve, long service life. The hinge drilling jig is a DIY woodworking toolis a good helper to install different kinds of cabinet door hinge jigs.

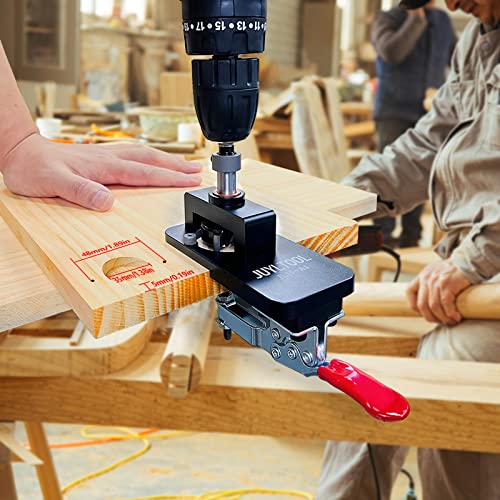

- 【Accurate positioning】: 35MM hinge jig is fixed to the workbench by the adjustable pressure plate and quick fixing clips on the base support, it does not shift when drilling and reducing wood being wasted. It makes it possible to achieve time saving when installing the same batch of wood panels as a must-have tool for cabinet makers/joiners.
- 【Widely application】: The 35MM hinge opener is suitable for 12-25mm wood, 35mm hole to edge distance of 5mm, suitable for most common hinge jigs, comes with 35mm hole saw and 2mm drill bit, can be used with any electric drill, 35MM hinge positioning opener is suitable for cabinet/kitchen/closet/cabinet door hinge punching and positioning.

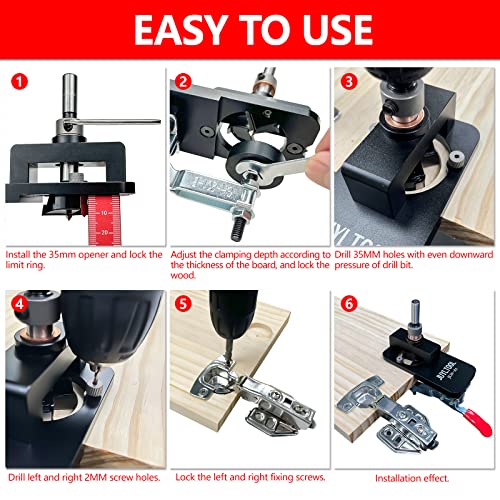

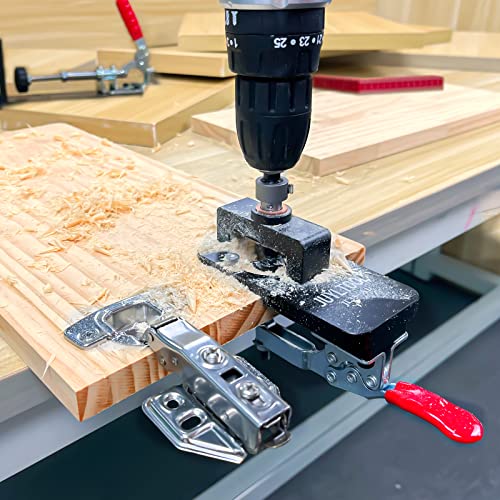

- 【Easy to use and install】: 1. Install the 35mm cabinet hinge jig, adjust the drilling depth according to the thickness of the hinge jig,then tighten the limit ring. 2. Determine the thickness of the board, adjust the black pressure plate fixed size (Note: The tool is suitable for 12-35mm boards). 3. Move the hole puncher to the mark and drilling position of the board, lock the quick clip. 4. Tighten the drill handle and press down the hole at an even speed to have Adjust the depth of the hinge, and then drill 2mm screw holes on the left and right sides.

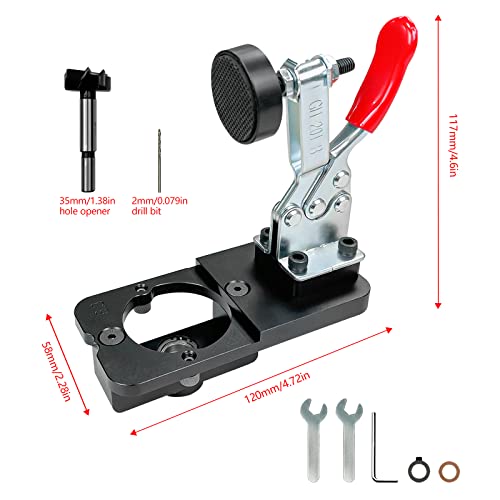

- 【Packing list】：1 hinge punching positioner, 1 35MM drill bit, 2 small wrenches, 1 hexagonal tool, 12mm drill bit, 1 screw, 1 limit ring (limit ring according to the thickness of the hinge to adjust the depth of the appropriate hole). 35MM Concealed hinge jig parts are accurate and easy to install, the best wood opening aid for woodworking enthusiasts.
›
Product Description 35MM cabinet hinge jig is made of durable aluminum alloy with a sharp drill bit. Provide precise positioning by adjustable pressure plate, fixing the board firmly and not easy to be shifted. Wide application: cabinet/bookcase/wardrobe/cabinet door, etc. It is a professional auxiliary tool for woodworking opening and suitable for home operation. 35MM hinge positioning hole opener Clampable board thickness: 12-25mm.Drilling depth: 12-13mm.35mm hole to the edge is 5mm, suitable for most common hinge clamps.When not in use, keep it tidy, check if the accessories are collected and place it in a dry, room temperature place. Package Includes： 1* Hinge Punch Locator Body 1*35mm Hole Opener 1*Limit Ring 2*Wrench 1*2mm Drill Bit 1*Hexagonal Wrench How to use ? Step 1 Install the 35mm hole opener, adjust the drilling depth, and then lock the limit ring. Note: Adjustable limit ring control and locking according to the depth of the hinge clamp. Step 2 Determine the thickness of the wood board, adjust the fast clip black pressure plate fixed size. Note: The tool can be adjusted to fix the size of the wood board 12-25mm. Step 3 Move the hole punch to the board marking line and drilling position, lock the quick fixing clip, and the adjustable platen fits the wood board. Step 4 Install the hole opener shank on the electric drill and tighten it, press down evenly to open the hole to 12-13mm depth, then drill 2mm screw holes on the left and right sides. Step 5 Finish drilling the holes, the distance from the 35mm hole to the edge is 5mm, which is suitable for most common hinges. Step 6 Install the 35mm hinge fixture and lock the left and right set screws. Widely Application Suitable for Multiple Wooden Furniture:Door/Window/Cabinet/Wardrobe/Bookcase etc.
